Description

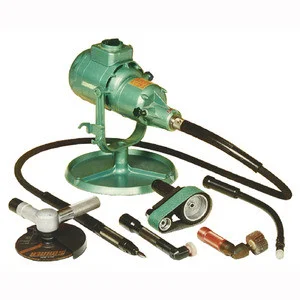

Unquestionably, the Suhner Rotofera is the most widely used heavy-duty, flexshaft unit in the world. Features a one horsepower, virtually maintenance-free, dust sealed, air cooled induction motor. Built to last with a rugged design.

Features:

• 1.34 Horsepower (1000W), 3-phase induction motor

• Geared Speeds: 1000, 1900, 2500, 3800, 6800,

9600, and 14,400 rpm.

• Availablein either 230 or 460 Volt, 3-Phase

• Available with pedestal base (F) or dolly base (STM)

• Motor weight ~ 37 lbs. on bench mount,

83 lbs. on dolly

StandardFlexshaft Unit consists of:

(ordered separately)

• Rotofera-F bench mounted Motor or

Rotofera-STM dolly mounted Motor (specify Voltage)

• NA10 D10/G28 x 2000mm Flexshaft Assembly

• FH-10 Straight Handpiece with 1/4″collet and

wrenches

Optional Equipment:

• NA12 Heavier-duty Flexshaft Assembly

• FH-12 Straight Handpiece with 1/4″ collet

• FSM-2:1 6″dia. Angle-Grinding Handpiece

• Wi-10-L Right-Angle Handpiece, extended version

• Wi-10 Right-Angle Handpiece with 1/4″ collet

• BSG-10/50 2″ wide Belt Sanding Handpiece

• FH-10-L Extended Handpiece for reaching otherwise inaccessible areas.

Please call 616-228-0650 if you have any questions or e-mail info.
