Description

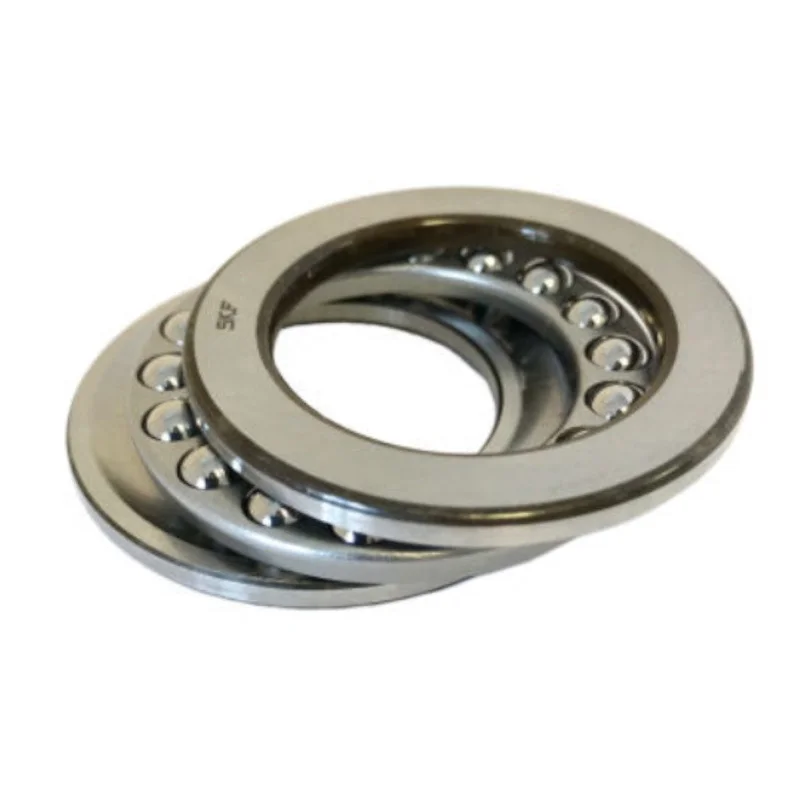

SKF Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately

Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

Principal dimensions:
d: 140mm
D: 180mm
H: 31mm

Basic load ratings:
Dynamic: 111 kN
Static: 440 kN

Fatigue load limit:
12,9 kN

Minimum load factor:
1

Speed ratings:
Reference speed 1 800 r/min
Limiting speed 2 600 r/min

Mass: 2,05kg

Dimensions:
d1: 140mm
D1: 180mm
r1,2 min: 1mm
