Description

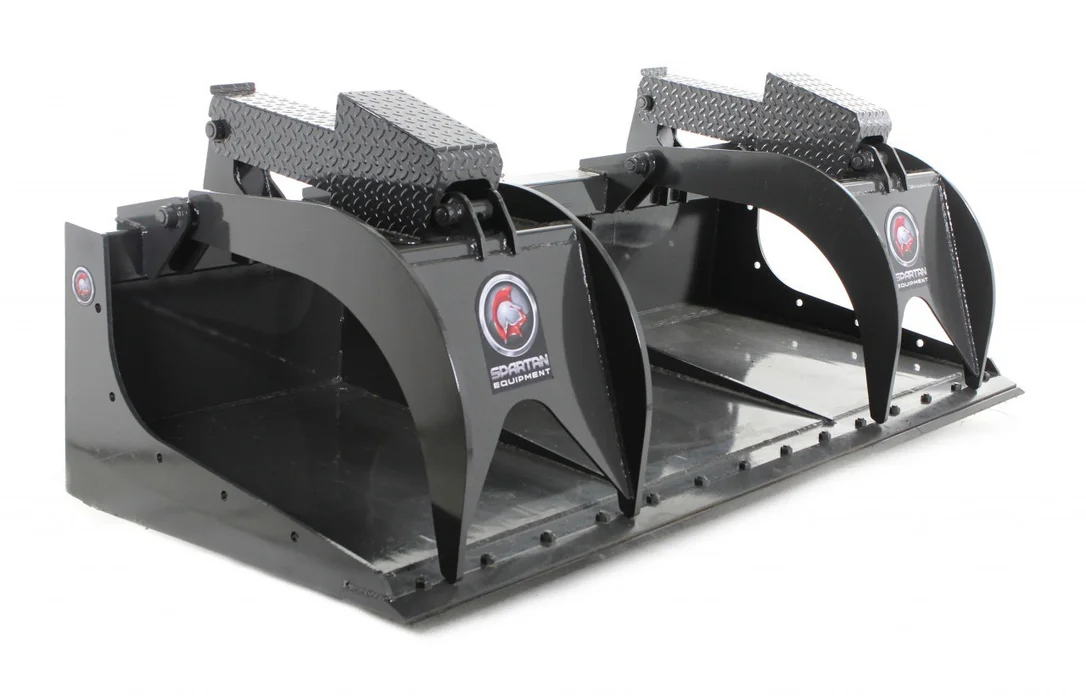

Our Industrial Series grapple bucket attachment combines the loading and leveling actions of a skid steer bucket with the “grabbing ability” of two hydraulic grapples. This design is for skid steer / compact track loaders and tractors that have 65 HP and above. The grapple bucket attachment’s basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris.

Our Industrial series grapple buckets feature enclosed cylinders, rod ends and hoses to protect against debris and stray limbs. We have also increased the depth of the bucket to 39″- giving it a larger loading capacity than ever before. Reinforced 1/2″ ribbed bottom reduces bowing and wear of the grapple bucket. We use a 1/2″ reinforced body and 5/8″ tines. The Industrial Series grapple bucket gives you the most protection and the best durability in the most severe applications.

The cylinders have a 2″ bore and 10″ stroke. We also protected the hydraulic lines by routing them inside of tubing to protect from falling debris and other wear and tear. Every pivot point has a grease fitting, and it comes standard with a 72″ x 5/8″ x 6″ Bolt On Cutting Edge.

Includes: Universal Skid Steer Mount, Rod Barrel Cylinder Covers, 1/4″ x 6′ Hoses 1/2″ Couplers, Bolt on Cutting Edge
