Description

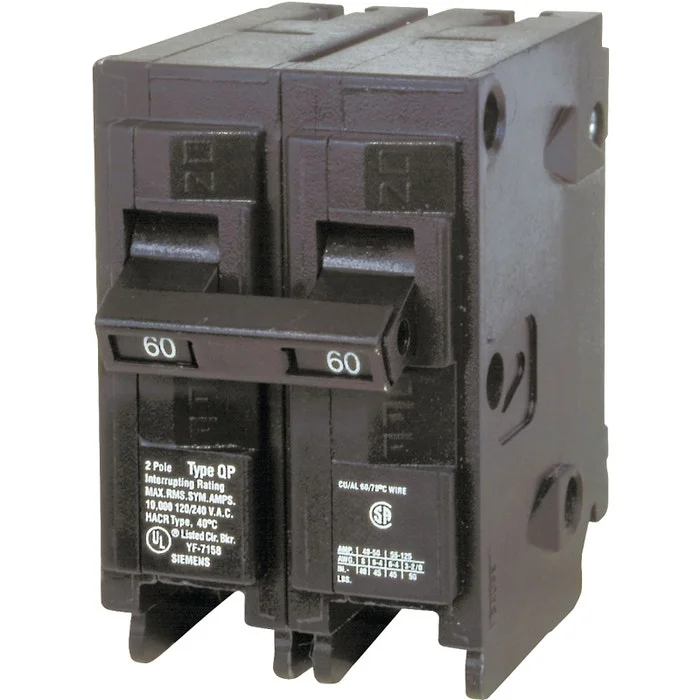

Molded case with non-interchangeable trip. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (Full size only), General Switch, I-T-E, Gould, Montgomery Ward and Sears. UL Listed. HACR rated. 120/240 volt AC; 10,000 AIR. 1″ per pole (2″ total).

Detailed Product Specifications

Manufacturer Part Number:Q220

Unit of Measure:EA

Actuator Type:Magnetic Thermal

Current Rating:20 A

Dimensions:2 in L x 3 in W x 3 in H

Frame Size:125 A

Frame Type:QP

Interrupt Rating:10 kA

Mounting Type:Plug-In

Number of Phases:1

Number of Poles:2

Operating Frequency:50/60 Hz

Operating Temperature:40 deg C

Suitable for:Siemens Load Centers

Terminal Type:Lug

Trip Type:Fixed

Type:Miniature

Voltage Rating:120/240 V

Wire Size:14 to 6 14 to 6 AWG
