• Product Number: 54408

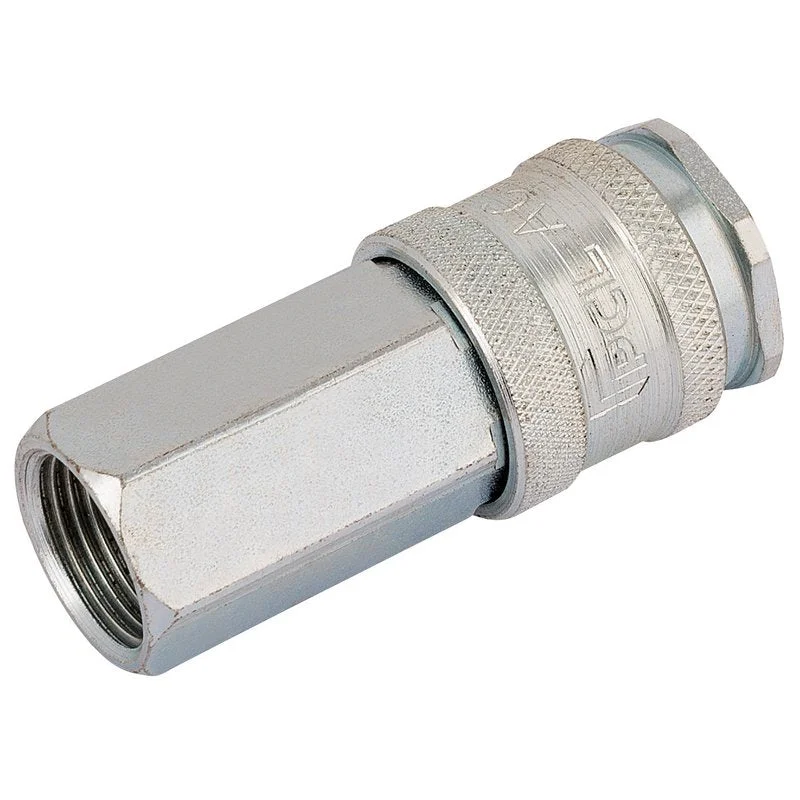

  For heavy duty high flow applications, BSP parallel, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.Product Key Feature:For heavy duty high flow applicationsTested to over 1M cyclesConnects to most popular industrial and European adaptor profiles (Cejn, Rectus etc)Zinc passivatedContents:1 x 3/8″ BSP Parallel Euro Coupling Female Thread (Sold Loose)

• • 0.5bar Pressure Drop:78cfm (2200L/min)
  • Max Burst Pressure:2030psi (140bar)
  • Max Working Pressure:500psi (35bar)
  • Nominal Flow Diameter:7.4mm
  • Temperature Range:-40 to 100°C
  • Test Pressure:725psi (50bar)
• New Grade – 24 Months Warranty from purchase is available on this product.
