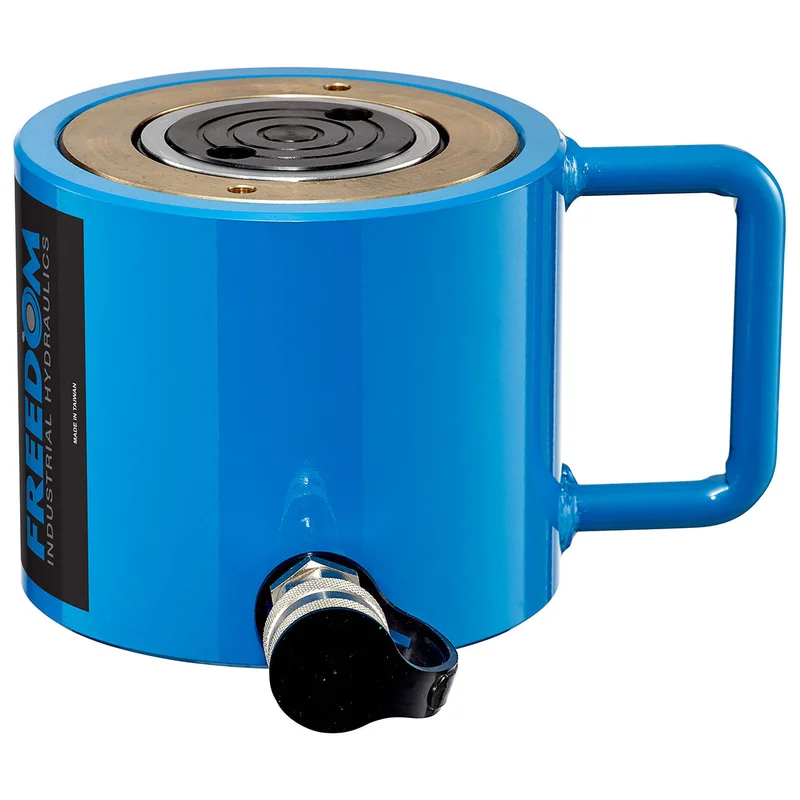

Description
- Designed for use in confined spaces
- Plunger wiper seal keeps out contamination and debris
- Upper and lower bronze bearings for minimal wear of
cylinder rod and maximizing lifetime of cylinder - Industrial grade spring for increased spring performance and lifetime
- Industrial grade steel construction withstands even
the most demanding of applications - • Chrome plated piston rod eliminates corrosion and rust
- 3/8” NPTF female coupler and dust cap on all models
Categories: Cylinders, Low Profile Cylinders
| Rated Capacity (Cap.) | 100 | . |
| Stroke (in.) | 2.25 | . |
| Model # | SL1002 | . |
| Cylinder Effective Area (in.2) | 20.57 | . |
| Oil Capacity (in.3) | 46.3 | . |
| Collapsed Height (in.) | 5.59 | (A) |
| Extended Height (in.) | 7.84 | (B) |
| Outside Diameter (in.) | 6.5 | (C) |
| Cylinder Bore Dia. (in.) | 5.12 | (D) |
| Plunger Diameter (in.) | 3.54 | (E) |
| Base to Coupler Port | 1.16 | (F) |
| Saddle Distance above Cylinder | 0.04 | (G) |
| Piston Thread Length | 0.55 | (H) |
| Saddle Diameter | 2.91 | (I) |
| Weight (lbs.) | 50.35 |
