Description

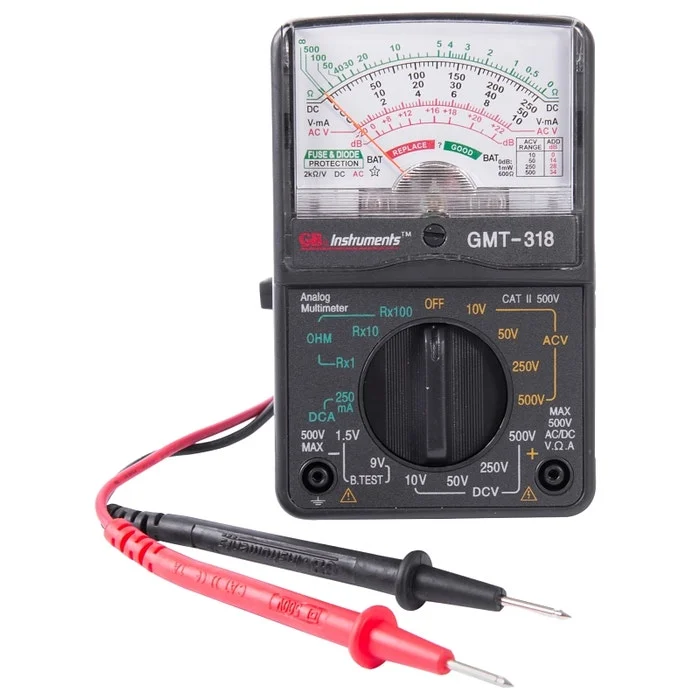

This multifunctional analog multimeter was designed for the homeowner, hobbyist or professional needing to make electrical and electronic equipment measurements. Capable of measuring 6 functions on 14 ranges on it is easy to read color-coded analog display you’ll find yourself reaching for this handy unit almost every time. Unit tests AC and DC voltage of 10-50-250 and 500 V, DC current 250 mA, up to 50K of resistance, -20 to +56 dB decibels on AC voltage ranges and common household batteries from 1.5 V thru 9 V. Unit includes built-in 0 Ohm adjustment dial allowing you to reset prior to resistance testing and to perform internal battery test function. Unit incorporates fuse overload protection circuitry to protect the user and a mirror scale is provided to reduce the possibility of parallax errors. Ships with test leads and a tri-lingual instruction manual and includes a 1 year warranty. Common measurements with this unit include – testing household batteries for charge level, troubleshooting various low voltage circuits, testing wall receptacles for proper voltage and grounding and troubleshooting electrical cords, stings of lights, fuses and switches to determine if they are operating properly or if a break in the circuit exists and the item in question needs to be repaired or replaced. The decibel feature of this multimeter is used for transistor gain measurement in electronic circuits and should not be confused with audio decibels.

Detailed Product Specifications

Manufacturer Part Number:GMT-318

Unit of Measure:CD1

Feature:Manual range selection

Feature:Agency approved with fuse overload protection circuitry incorporated

Feature:Easy to read, color-coded analog displays

Feature:15-position rotary dial

Feature:Replaceable test leads

Feature:0 Ohm adjustment dial

Accuracy:/-5 VAC /-4 VDC

Color:Black

Display Type:Analog

Includes:Replaceable Test Leads

IP Rating:IP20

Measuring Functions:AC Voltage DC Current DC Voltage Resistance

Power Source:AA Battery

Power Supply:1.5 V

Resistance:1 Ohm to 50 kOhm

Temperature Rating:64 to 77 deg F
