Description

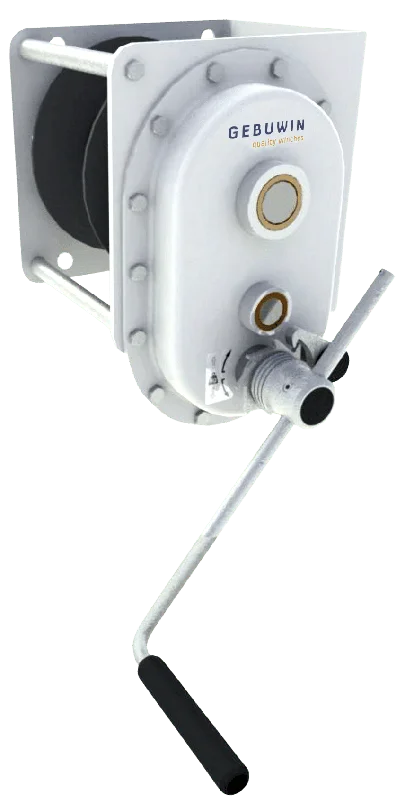

Gebuwin ATEX Spur Gear Hand Winch 150kg
This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- cable outlet upwards
- adjustable crank
- suitable for wall mounting
- 1 layer of paint
Spec
| Capacity 1st layer |
150 kg |
|---|---|
| Capacity 4th layer |
98 kg |
| Capacity top layer |
67 kg |
| Rope diameter-Ø |
4 mm |
| Rope storage 1st layer |
0,7 meter |
| Rope storage 4th layer |
4,9 meter |
| Rope storage top layer |
13,1 meter |
| Lift per crank rotation |
122 mm |
| Crank effort at full load |
10 daN |
| Weight (without rope) |
4 kg |
