Groz Air Filter – Regulator Combination 2 piece 60452

Short

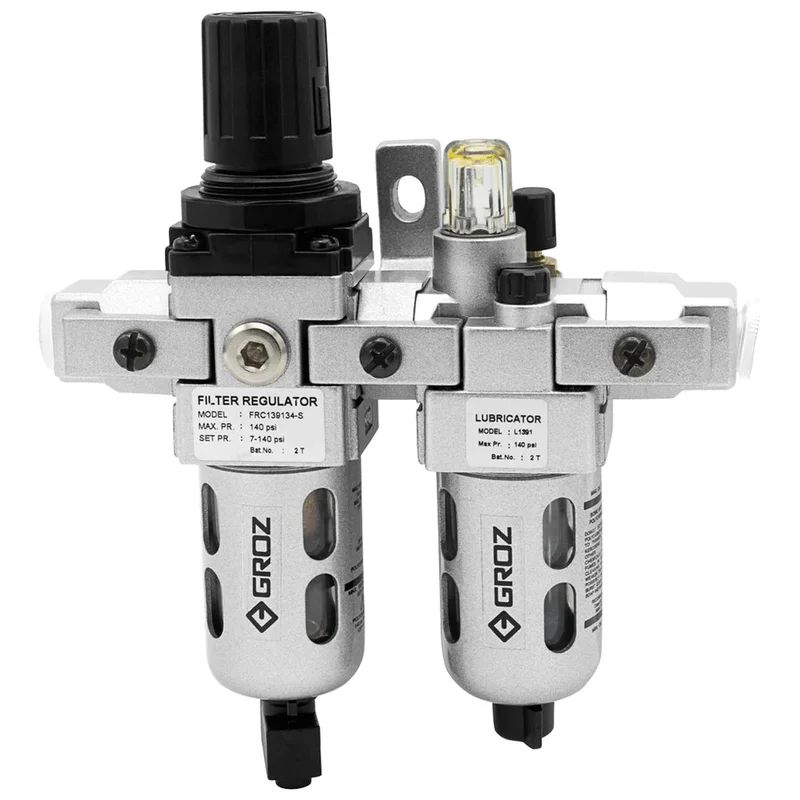

Groz 60452 Groz 60452 Air Filter – Regulator Combination and Lubricator – Modular 2 Piece, Polycarbonate Bowl, Standard-1/2” NPT, 99 CFM

Space saving 2 piece Modular Filter- Regulator Combination & Lubricator is by far the most popular Air Preparation Unit.

The modular series comes complete with piping adaptors and wall mounting bracket. Piping adaptors make individual components easily removeable/mountable without disturbing the pipeline.

Air Filter is used to separate dust, dirt, moisture & other contaminants from compressed air. Filter has a Die Cast Aluminum body, polycarbonate bowl with a steel bowl guard & a high performance Sintered Bronze Filtering element. Filter is designed with a Separator & shield for efficient moisture separation.

Regulators maintain a steady outlet pressure, unaffected by variations/fluctuations in the inlet pressure. Regulators have a Non Raising “Press to Lock” adjusting knob for locking at any set pressure. Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet

Air Lubricators are used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow. Lubricators are Fog/MicroMist type, up to 50’ pipe runs. Designed for best performance with 32 grade oil. These have a Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard. The head is fitted with Oil drop indicator, Oil drop controller & Oil filling plug

WETTED COMPONENTS
Aluminum, Bronze, Brass, Steel, Acetal, Polycarbonate, Stainless Steel & Nitrile
