GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring

Sale!
2026_05_25_1114813

GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring

Original price was: $23.00.Current price is: $6.90.

Choose Diameter – Length – W.L.L.:

SKU: 6620774662225 Category:

Description

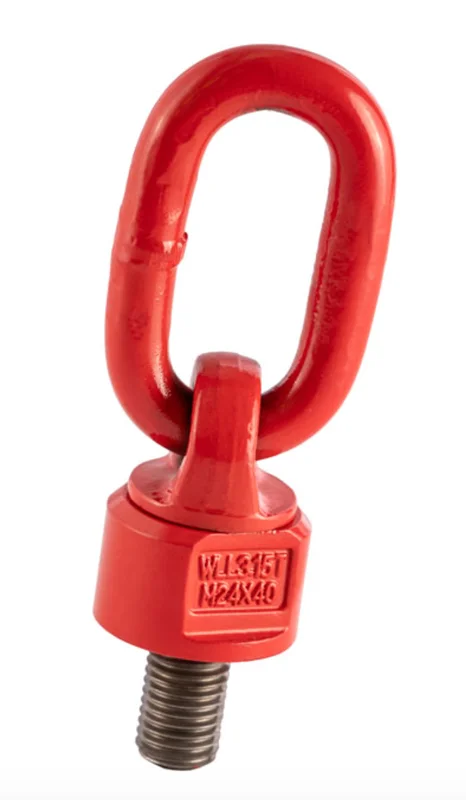

GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring

  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • Not suitable for rotation under load.
  • Certification – Declaration of Conformity

Specification

SKU W.L.L 0° W.L.L 90° D x E A B C G O T W Torque Weight
t t mm mm mm mm mm mm mm mm Nm kgs
286-604-1 0.6 0.3 M8 x 13 55 36 16.5 51 14 41 30 10-15 0.45
286-604-2 1 0.5 M10 x 18 55 36 16.5 51 14 41 30 10-15 0.45
286-604-3 1 0.5 M10 x 90 55 36 16.5 51 14 41 30 10-15 0.5
286-604-4 1 0.5 M12 x 18 55 36 16.5 51 14 41 30 10-15 0.46
286-604-5 1 0.5 M12 x 110 55 36 16.5 51 14 41 30 10-15 0.54
286-604-6 2.24 1.12 M16 x 20 55 36 16.5 52 14 42 30 20-30 0.47
286-604-7 2.24 1.12 M16 x 120 55 36 16.5 52 14 42 30 20-30 0.63
286-604-8 4 2 M20 x 30 70 49.5 19 68 16 56 35 50-70 0.99
286-604-9 4 2 M20 x 120 70 49.5 19 68 16 56 35 50-70 1.12
286-604-10 6.3 3.15 M24 x 40 85 57 22 78 18 65.5 40 130-160 1.36
286-604-11 6.3 3.15 M24 x 120 85 57 22 78 18 65.5 40 130-160 1.65
286-604-12 10.6 5.3 M30 x 45 85 66 23.5 96.5 22 80.5 40 200-250 2.36
TBC 10.6 5.3 M30 x 120 85 66 23.5 96.5 22 80.5 40 200-250 2.77
TBC 12.8 8 M36 x 50 115 80 27 109 22 89.5 50 280-400 3.88
TBC 12.8 8 M36 x 140 115 80 27 109 22 89.5 50 280-400 4.6
TBC 16 10 M42 x 60 115 80 27 109 25 89.5 50 500-600 4.56
TBC 16 10 M42 x 160 115 80 27 109 25 89.5 50 500-600 5.65
TBC 16 10 M45 x 60 115 80 27 109 25 89.5 50 500-600 4.7
TBC 16 10 M48 x 72 115 80 27 109 25 89.5 50 500-650 4.9
TBC 16 10 M48 x 160 115 80 27 109 25 89.5 50 500-650 6.18
TBC 24 15 M56 x 84 152 117 42 246 32 214 70 600-900 11.8
TBC 24 15 M64 x 95 152 117 42 257 32 225 70 600-900 12.5

Additional information

mycustom

Choose Diameter – Length – W.L.L.#8mm / 18mm / 0.6t, 10mm / 18mm / 1.0t, 10mm / 90mm / 1.0t, 12mm / 18mm / 1.0t, 12mm / 110mm / 1.0t, 16mm / 20mm / 2.24t, 16mm / 120mm / 2.24t, 20mm / 30mm / 4.0t, 20mm / 120mm / 4.0t, 24mm / 40mm / 6.3t, 24mm / 120mm / 6.3t, 30mm / 35mm / 10.6t
