Description

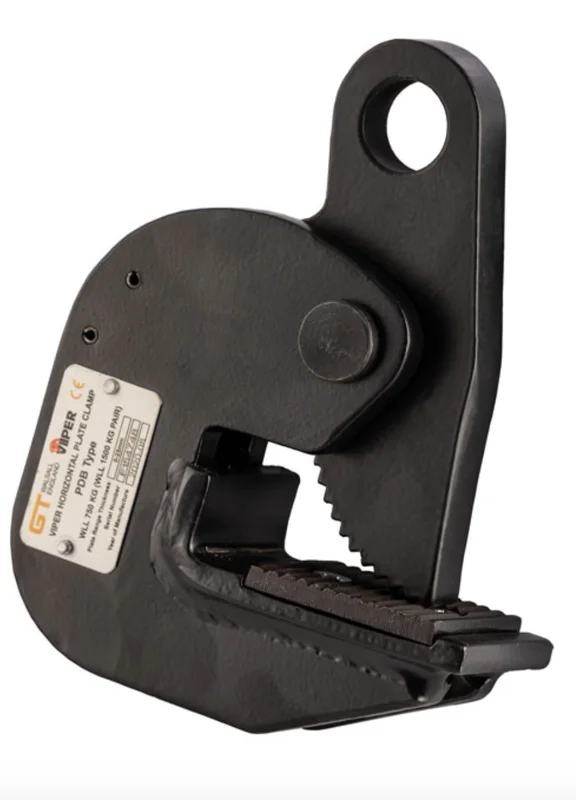

GT Viper Horizontal Plate Clamp – PDB Type (Supplied on Pairs)
- Specially hardened steel is used in both the serrated jaws.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13155.
- Minimum breaking load is 4 times the W.L.L.
- The steel plate lifted should be under the HRC 37 (HB 345).
- Lifting under 20% of the rated capacity loading is strictly forbidden.
- The GT Viper plate clamp is designed to lift one plate at a time.
- Marked in accordance with BS EN 13155.
- Certification available
Specification
| SKU | Capacity Per Pair | Jaw Opening | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|---|---|
| kgs | mm | mm | mm | mm | mm | mm | kgs | |
| 286-525-10 | 1,500 | 0 – 25 | 125 | 175 | 38 | 14 | 22 | 2.5 |
| 286-525-11 | 2,000 | 0 – 30 | 155 | 205 | 38 | 16 | 25 | 3.5 |
| 286-525-12 | 3,000 | 0 – 30 | 158 | 205 | 42 | 16 | 25 | 4 |
| 286-525-13 | 4,000 | 0 – 40 | 180 | 252 | 46 | 18 | 30 | 5 |
| 286-525-14 | 5,000 | 0 – 45 | 185 | 252 | 50 | 18 | 30 | 6 |
| 286-525-15 | 8,000 | 0 – 50 | 180 | 260 | 52 | 18 | 30 | 6.5 |
