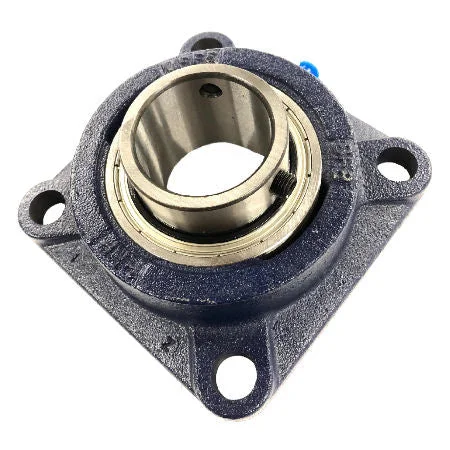

MSF35 RHP 4 Bolt Cast Iron Flange Bearing Unit 35mm Bore

Sale!
2026_05_25_1081197

MSF35 RHP 4 Bolt Cast Iron Flange Bearing Unit 35mm Bore

Original price was: $66.00.Current price is: $19.80.

SKU: 7067834712154 Category:

Description

These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 35mm
RHP designation: MSF35
Basic bearing insert: 1040
Casting group: 3

Dimensions (mm)
L: 130.2
H: 101.6
J: 101.50
G: 12
A: 34.9
A1: 54.18
A4: 12.7
B: 49.20
S: 19.03

ISO Load ratings (newtons)
Dynamic: 32500
Static: 19900

Rec max speed: 4000 rev/min

Mass: 2.2 kg
