Description

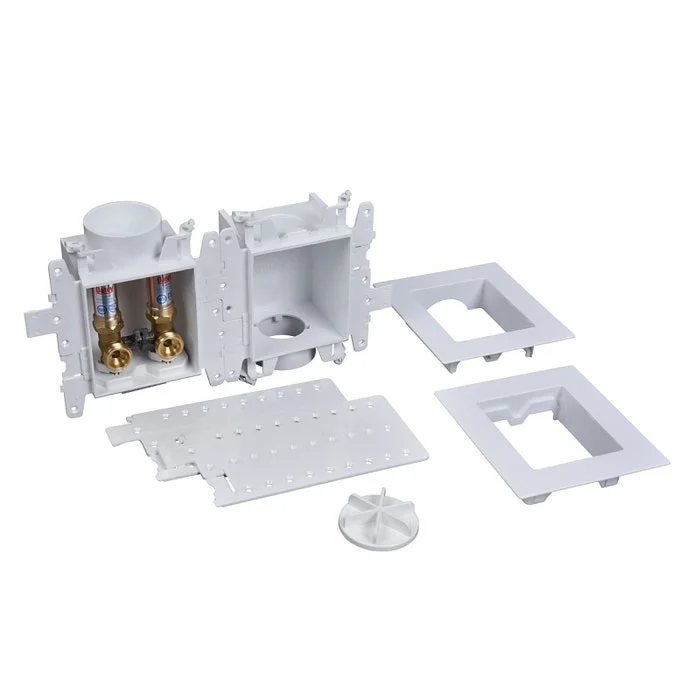

MODA Supply box system is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent® air admittance valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA Supply box system is the ultimate solution for speed and flexibility. Oatey MODA™ washing machine outlet boxes shall be used in residential or commercial applications requiring supply valves and a waste drain recessed in the wall. The MODA™ washing machine assembly contains a valve box and a drain box, connected by inter-locking wing flanges that can be easily disassembled and re-assembled. The inter-locking wing flanges shall allow installation on a single stud, between two studs or on separate walls, without the need for additional components. Valves shall be a two-piece design, permitting field replacement and shall be secured with a stainless steel retention clip. Valves are available with or without water hammer arrestors and shall be installed upright or inverted. The assembly shall include a removable quarter-turn plug for DWV testing and shall include an emergency drain port for added protection from hose leaks.

Detailed Product Specifications

Manufacturer Part Number:37611

Unit of Measure:BAG

Feature:Using a single box platform provides significant convenience to installers

Feature:Unique interlocking wing flanges accommodate on-stud, straddle-stud and three box installations

Feature:Advanced snap lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job

Feature:Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply and drain crossovers

Feature:Dual box design provides ideal options for stacked washer, dryers and space limited laundry rooms

Feature:Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe

Feature:Two-piece valve design makes valve replacement easy to repair, without damaging drywall

Feature:Valves rated to 150 psi air and 250 psi water

Connection Size:1/4 in

Includes:(2) Faceplate (2) Side Bracket (2) Sticker Cover (1) Center Support (1) Test Plug

Length:14.13

Material:PVC

Width:3.38
