Description

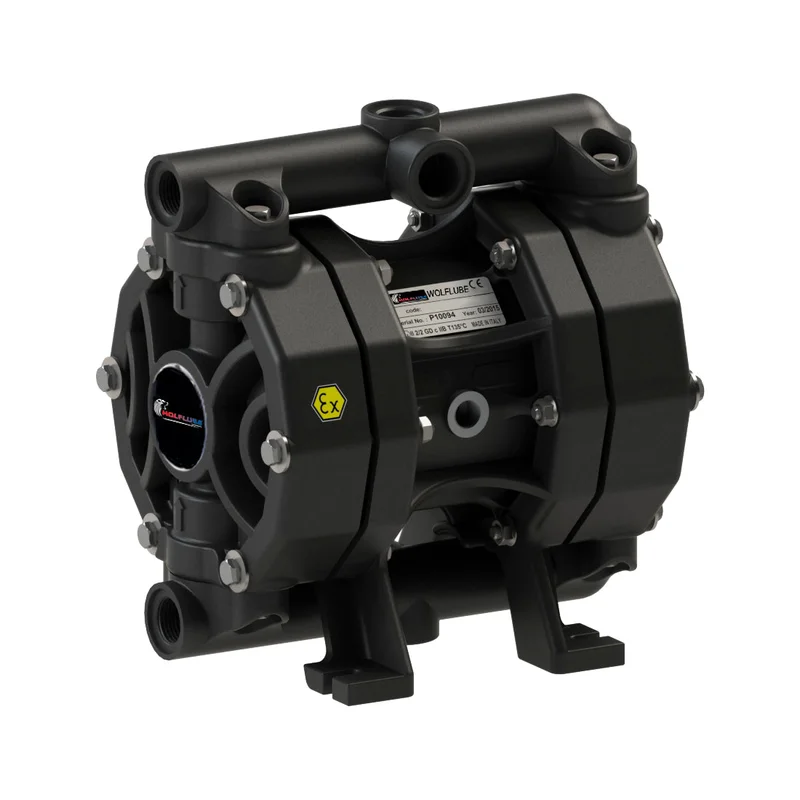

Conventional air operated diaphragm pumps pump the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.

Fluids Handled

• Oils
• Antifreeze
• Windshield Wash Solution
• Hydraulic Fluids
• Diesel
• Water
• Waste Oil & Antifreeze

Pump Pressure Ratio

1:1

Maximum Free Flow Rate

164 gal/min (621 l/min)

Maximum Suction Lift

18′

Minimum Air Pressure

20 psi (1.5 bar)

Maximum Air Pressure

100 psi (7 bar)

Max Size Solid Suspension

5/15″

Air Inlet

1″ NPTF

Fluid Outlet

Ansi Flange & 2″ NPTF

Fluid Inlet

Ansi Flange & 2″ NPTF

Wetted Materials

Aluminum, NBR
