Slingco DE Type Double Eye Galvanised Cable Grips

Sale!

Slingco DE Type Double Eye Galvanised Cable Grips

Original price was: $36.00.Current price is: $10.80.

Specification (Type/Overall Length/Break Load/Range):

SKU: 9361873994013 Category:

Description

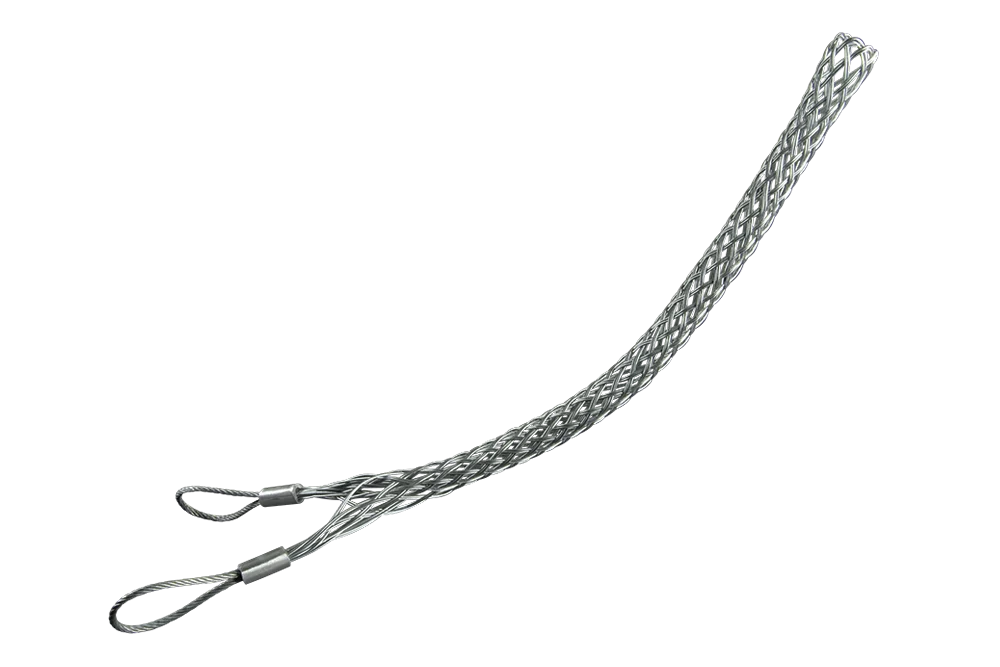

Designed for pulling light to medium loads, these DE Type Cable Grips from Slingco are manufactured from galvanised steel, providing optimal strength properties, as well as the ability to be utilised in underground installations.

Featuring a Double Eye (DE) design, the main advantage over the Single Eye (SE) is that the cable being pulled can be passed through the grip, with several cable grips being used to support over a calculated distance.

Available in both single and double weave variations, breaking loads range from 0-75Tonne right through to 7Tonnes – see specification table for more details.

Additional information

mycustom

Specification (Type/Overall Length/Break Load/Range)#Single weave 305mm/ 0.75T/ 10-13mm, Single weave 430mm/ 1T/ 13-19mm, Single weave 510mm/ 2.5T/ 19-25mm, Single weave 610mm/ 3.5T/ 25-38mm, Double weave 735mm/ 5T/ 38-50mm, Double weave 865mm/ 5T/ 50-63mm, Double weave 990mm/ 6T/ 63-89mm, Double weave 990mm/ 7T/ 89-155mm, Double weave 990mm/ 7T/ 115-130mm
