Description

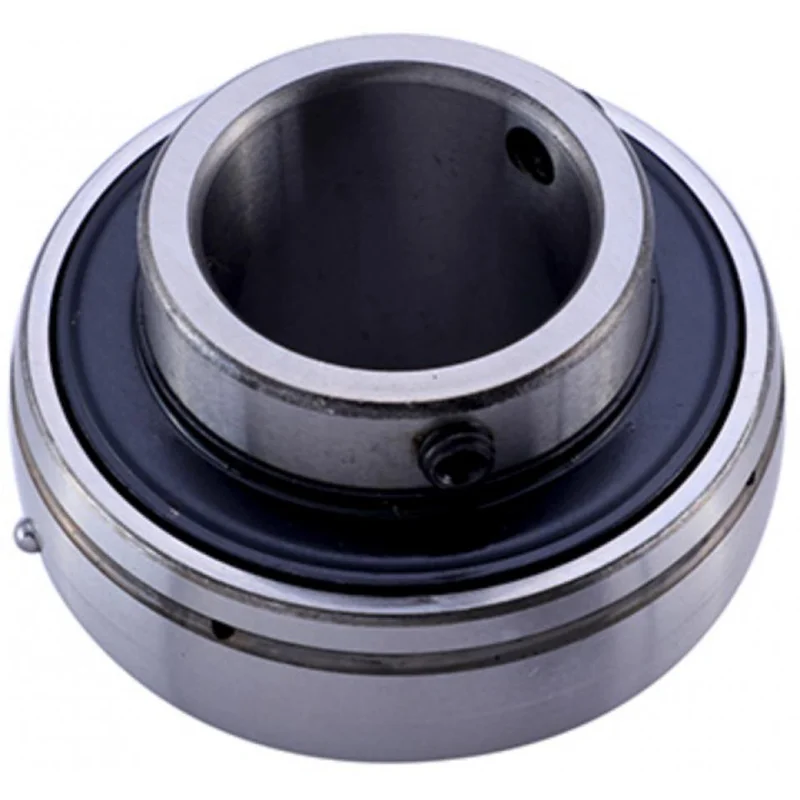

The Self-Lube bearing insert, commonly known as a wide inner ring bearing, is designed to suit the wide range of housings offered in the Self-Lube bearing family and is also suitable for applications where the user’s own housing is preferred.

They are basically deep-groove ball bearings, to the popular 6200 series configuration, with integral design features making them more functional and versatile than standard ball bearings.

Bore dia: 3/4″ inch
D: 47mm
C: 16mm
B: 31mm
s: 12.7mm
M: 5.00mm
r: 1.00mm
ISO load rating dynamic: 12800 newtons
ISO load rating static: 6650 newtons
